Booster T1

Booster T1 is an open-source humanoid robot with NVIDIA Jetson AGX Orin AI, ROS2 support, and advanced sensors, designed for research, education, and dynamic robotic applications.

Enquire about robot



Data verified by manufacturer

Made by

Booster Robotics Technology Co., Ltd. (北京加速进化科技有限公司)

Software Type

Open Source

Software Package

Complete open-source SDK with high-level motion and low-level hardware control. ROS2 compatibility for integration and monitoring. Support for AI models including edge LLM, object recognition (YOLO), TTS, and ASR. Simulation interfaces for Isaac Sim, Mujoco, and Webots. Mobile app for remote control and feedback.

Actuators

The robot uses full-force-controlled with dual-encoders, supporting mixed control of torque, velocity, and position. Maximum torque for knee joint ins 130 N.m.

Compiute

Standard spec is powered by a 14-core Intel CPU and NVIDIA Jetson AGX Orin GPU delivering 200 TOPS.

Sensors

Equipped with an RGBD camera (Intel RealSense D455), microphone array, 9-axis IMU, and speaker, supporting depth perception, audio interaction, and precise balance control.

Max Op. time

240

mins

Robot Brief

Booster T1 is a lightweight, high-performance, open-source bipedal humanoid robot designed specifically for developers and researchers. The Booster T1 series is highly suitable for secondary development, offering robust software support with interfaces for low-level joints and sensors, as well as high-level motion control. The software system is compatible with the ROS2 communication protocol and provides robot models and simulation interfaces for environments such as Issac sim. A mobile phone app is also available for network configuration and remote control. The different Booster T1 models offer a range of capabilities, from the basic version with 100 TOPS of AI computing power to more advanced models with a more powerful processor (Intel i7 1370p + NVIDIA Jetson AGX Orin) providing 200 TOPS, and enhanced arm and hand capabilities for grasping and dexterous manipulatio

Use Cases

Booster T1 performs agile bipedal locomotion, omnidirectional walking, and complex manipulation tasks with precise control over its 23 joints. It can navigate uneven terrain, withstand disturbances, and recover from falls autonomously. The robot supports advanced AI functions such as object recognition, speech recognition, and text-to-speech, facilitating natural human-robot interaction. Its open-source SDK and ROS2 compatibility enable developers to customize motion, integrate sensors, and develop new applications. Booster T1 is suitable for robotics research, education, industrial automation prototyping, and competitive robotics.

Industries

Research & Development: Provides a flexible platform for robotics algorithm development and testing.
Education: Supports hands-on learning in robotics and AI through open-source tools.
Industrial Automation: Enables prototyping of humanoid applications in manufacturing and logistics.
Entertainment & Competitions: Performs dynamic movements for demonstrations and contests.
Human-Robot Interaction: Facilitates development of multimodal communication and collaboration.

Specifications

Length

470

Width

230

Height (ResT)

Height (Stand)

1200

Height (Min)

Height (Max)

1200

Weight (With Batt.)

Weight (NO Batt.)

Max Step Height

Max Slope

+/-

Op. Temp (min)

°C

Op. Temp (Max)

°C

Ingress Rating

No items found.

Intro

The Booster T1 is a highly versatile humanoid robot series designed for developers and researchers, with four distinct models to cater to various levels of complexity and application. Ranging in degrees of freedom (DoF) from 23 to 41, the robot's capabilities are expandable from basic bipedal locomotion to complex manipulation tasks. Its open-source architecture and comprehensive API, compatible with ROS2 and simulation environments like Isaac Sim, make it a powerful platform for research and development.

The Booster T1's robust design and advanced motion control system have proven its capabilities in a variety of challenging scenarios. Examples of its potential use cases include:

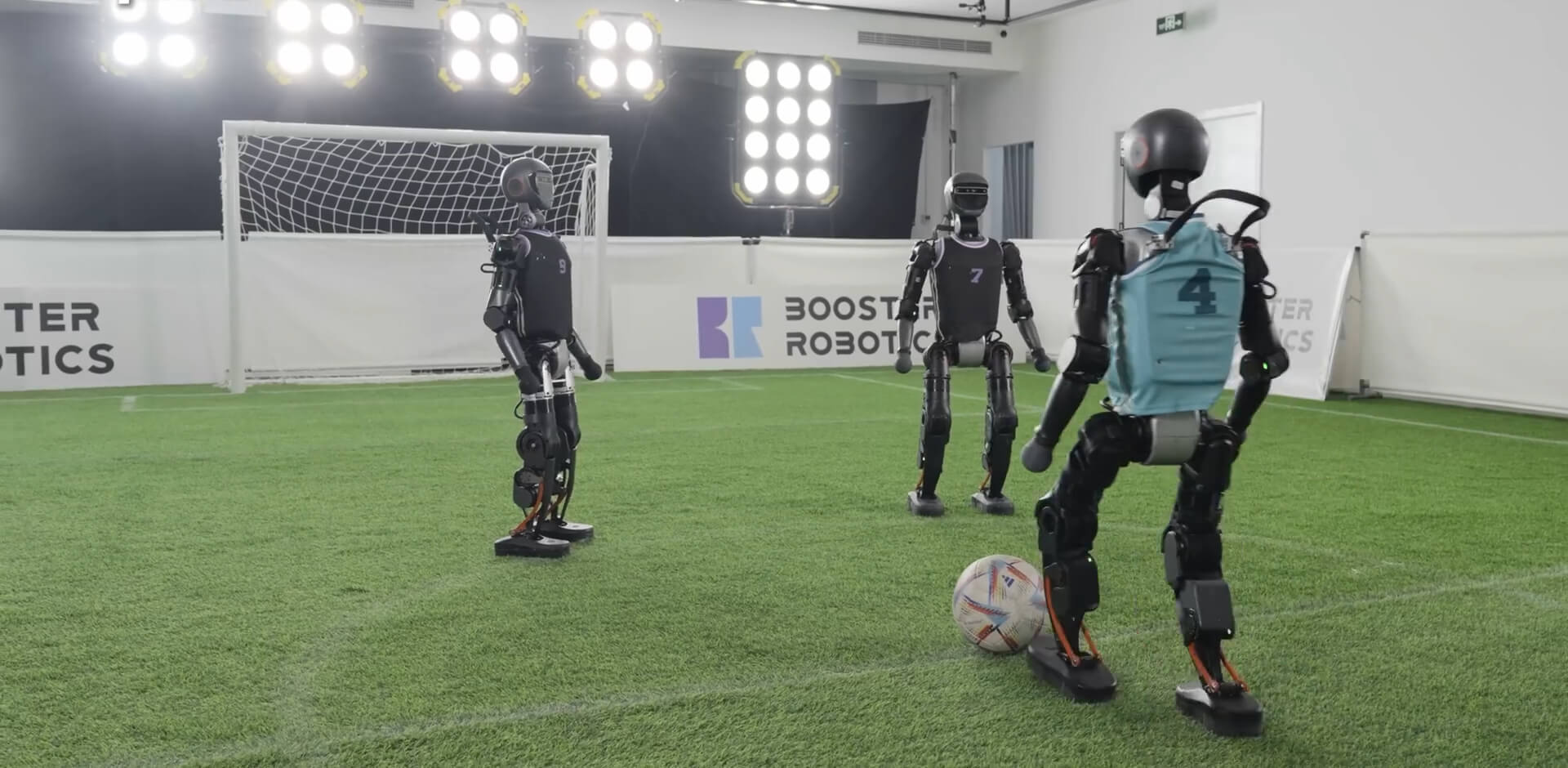

Robotics Competitions: The robot has been specifically designed to meet RoboCup standards, and a demo is available for it to autonomously play soccer, showcasing its agility and decision-making abilities.
Education and Research: Its open platform is ideal for teaching students advanced robotics concepts, and for researchers to test and develop new solutions in areas like bipedal locomotion and human-robot interaction.
Industrial Applications: The models with grippers and dexterous hands can be utilized for tasks requiring precision and agility, such as industrial automation, assembly lines, and material handling.
Demonstrative and Entertainment: The robot's ability to perform complex movements like kung fu and stand up from a prone position in a second highlights its potential for demonstrations and entertainment purposes.

The Booster T1 series come with 4 different specs, Basic, Standard, equipped with Grippers, and equipped with Dexterous Hands. All specs have:

Large Joint Movement Space:
- Waist joint: ±58°
- Hip joint: P ±118°, R -21°~88°, Y ±58°
- Knee joint: 0°~123°
- Ankle joint: P -50°~20°, R ± 25°.
Support for VR applications and advanced simulation environments like Isaac Sim and Mujoco.
Accessories include a remote control, charge, robot vertical stand and a robot transport case.

Connectivity

WiFi 6(2.4 GHz and 5 GHz bands)
Bluetooth 5.2 for mobile app connection and real-time control
USB and Ethernet ports for peripheral devices
ROS2 communication protocol support
Compatible with simulation platforms Isaac Sim, Mujoco, and Webots.

Capabilities

Booster T1 can:

Perform omnidirectional walking, running, and complex sports-like movements
Transition smoothly from prone to standing positions autonomously
Execute precise manipulation and balance control with full-force-controlled joints
Recognize objects and speech, and generate speech responses (TTS and ASR)
Operate for up to 2 hours walking or 4 hours standing on a 10.5 Ah battery
Interface seamlessly with ROS2 and custom development environments
Support VR teleoperation for immersive control and testing.
