DEEP Robotics Lynx M20 - Robot Details, Use Case and Specifications

Dual octa-core 64-bit processors with 16GB RAM and 128GB storage (M20 model). Advanced onboard computing for real-time SLAM, perception, and autonomous navigation.

Sensors

Equipped with dual 96-line LiDAR units providing 360°×90° field of view and ~860k points/sec, complemented by wide-angle 1080p RGB cameras and bi-directional lighting for night and low-visibility operation.

Max Op. time

180

mins

Pricing

Not provided.

Robot Brief

The DEEP Robotics Lynx M20 is a rugged, wheeled-legged quadrupedal robot designed to operate in extreme industrial environments. Developed to enhance safety and efficiency, it combines the agility of a quadruped with the speed and stability of wheeled locomotion. The robot features a compact frame (0.8m×0.5m×0.6m), weighs 30kg, and supports a 15kg payload. It excels at traversing complex terrain, climbing obstacles up to 80cm, and performing autonomous inspection, surveillance, and logistics tasks in harsh conditions.

Use Cases

All-Terrain Mobility: Moves on four wheels with the ability to lock wheels for walking mode, enabling obstacle climbing and rough terrain navigation.
Autonomous Inspection: Uses 96-line LiDAR and wide-angle cameras for 360° situational awareness and data collection.
Surveillance & Monitoring: Provides real-time video and sensor data transmission for remote monitoring.
Payload Transport: Carries up to 15kg payload for material handling or sensor integration.

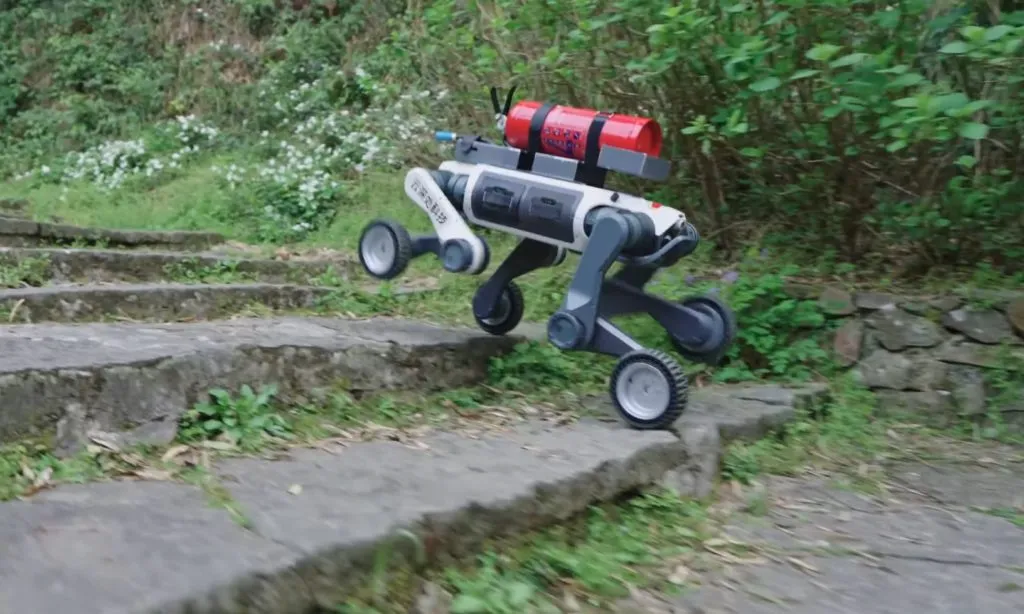

Obstacle Clearance: Can climb steps up to 80cm and tackle slopes up to 45°.
Long Endurance: Operates continuously for up to 3 hours with hot-swappable dual batteries.

‍

Industries

Infrastructure Inspection: Ideal for monitoring pipelines, power plants, and construction sites in hazardous or remote areas.
Disaster & Emergency Response: Supports search and rescue by navigating debris and rough terrain.
Logistics & Distribution: Automates material handling in warehouses and outdoor logistics hubs.
Scientific Research: Collects environmental data in extreme or inaccessible locations.
Manufacturing: Performs routine checks and surveillance in industrial facilities.

‍

Specifications

Length

820

Width

430

Height (ResT)

Height (Stand)

570

Height (Min)

Height (Max)

Weight (With Batt.)

Weight (NO Batt.)

Max Step Height

Max Slope

+/-

Op. Temp (min)

-20

°C

Op. Temp (Max)

°C

Ingress Rating

IP66

No items found.

Intro

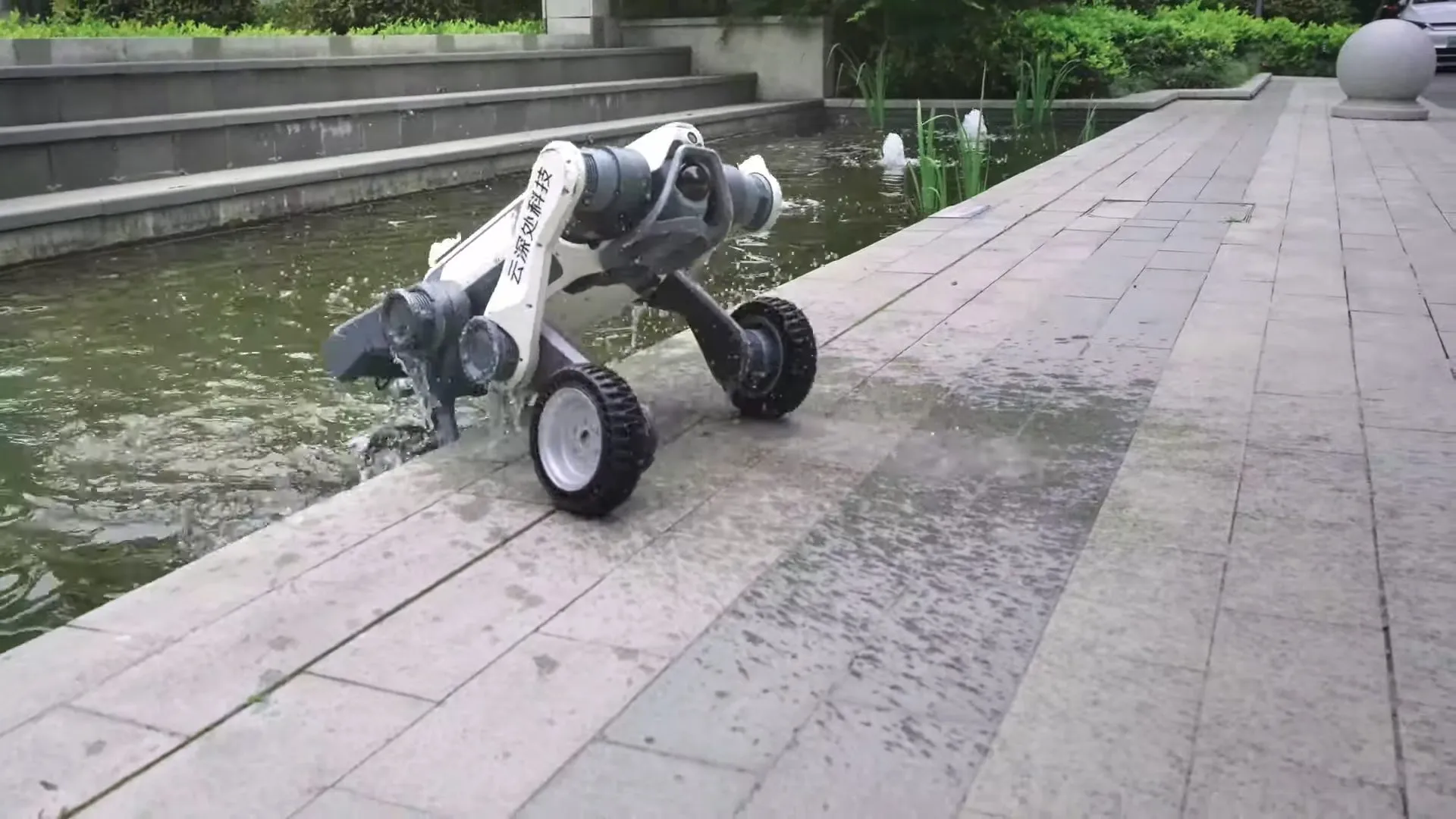

The Lynx M20 is a versatile wheeled quadruped robot combining four-wheel speed with legged agility. Measuring 820×430×570 mm and weighing 30–33kg, it is equipped with dual 96-line LiDAR sensors, wide-angle cameras, and bi-directional lighting for all-weather operation. Its modular design supports payloads up to 15kg and features hot-swappable batteries for extended missions. The robot can switch between wheeled locomotion for speed (up to 5 m/s) and legged mode for obstacle climbing, making it suitable for complex industrial and outdoor environments.

Connectivity

Wi-Fi for high-performance image and video transmission.
GPS for positioning and navigation.
Gigabit Ethernet and 72V power input ports for external device integration.
OTA (Over-the-Air) software updates.

‍

Capabilities

Hybrid Locomotion: Combines wheeled speed with legged obstacle negotiation for versatile terrain adaptability.
Advanced Perception: Dual 96-line LiDAR and cameras enable 360° situational awareness and precise mapping.
High Payload Capacity: Supports up to 15kg, allowing integration of various sensors or cargo.
Long Endurance: Dual hot-swappable batteries provide up to 3 hours runtime and 15 km range.
Obstacle Navigation: Climbs steps up to 80cm and slopes up to 45°, surpassing many competitors.
Robust Design: IP66-rated protection for dust and water resistance, suitable for harsh environments.

‍
