Intro

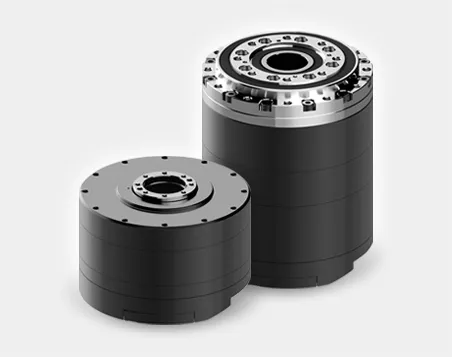

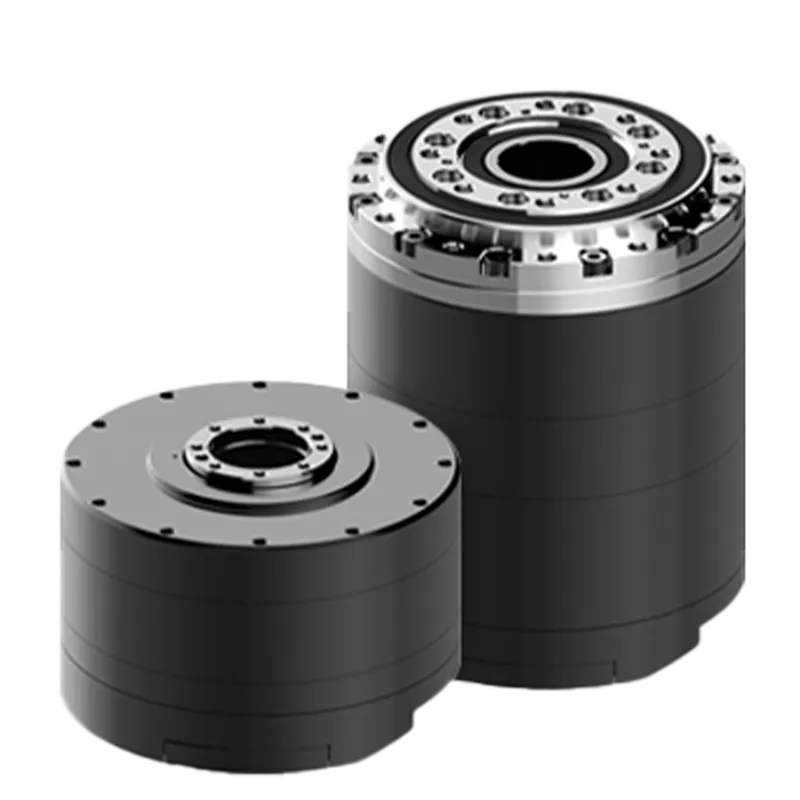

DYNAMIXEL is a brand of smart actuators developed by ROBOTIS, designed specifically as integrated robotic joints that combine multiple components into a single modular unit. The name "DYNAMIXEL" is derived from "Dynamic" and "Cell," reflecting its role as a dynamic building block for robotic systems.

Key features of DYNAMIXEL actuators include:

All-in-One Design: Each actuator integrates a DC motor, reduction gear, controller, driver, sensors, and communication network within one compact module.
Multiple Control Modes: They support various operating modes such as position control, velocity control, current-based torque control, extended position control (multi-turn), and PWM voltage control, allowing adaptable use across diverse robotic applications.
Wide Application Platforms: DYNAMIXEL actuators are widely used in robotics research, education, humanoids, quadrupeds, robotic arms, and industrial robots.

In essence, DYNAMIXEL actuators are sophisticated, versatile, and reliable servo modules that act as the fundamental joints in modern robotic systems, enabling dynamic, precise, and interactive robot motions.

A comparison table about DYNAMIXEL X, Y and P:

Feature	DYNAMIXEL X Series	DYNAMIXEL Y Series	DYNAMIXEL P Series
Overview	High-performance, versatile, all-in-one smart actuators for education, research, and industrial use.	Newest line focusing on modularity, configurability, and higher torque.	Previous generation industrial-grade actuators focused on power, precision, and durability.
Voltage Range	Typically 11.1V (some models support up to 24V)	24V models	24V models
Torque Range	From ~1.5 Nm (smallest) to ~12 Nm (largest) in current models	Higher torque compared to X, modular options including gear reductions and brakes	Designed for high torque industrial applications, up to ~45 Nm or more
Communication Protocols	TTL and RS485 supported, Robotis Protocol 2.0	RS485, Robotis Protocol 2.0	RS485, Robotis Protocol 2.0
Control Modes	Position, Velocity, Current, PWM, Extended Position	Similar multiple control modes; flexibility enhanced with modular options	Position, Speed, Torque control with advanced PID
Encoder Type	12-bit contactless absolute encoder	High resolution, contactless encoder	High resolution absolute encoders
Durability	Aluminum body with hollow back case for improved heat dissipation and cable management	Improved durability and performance, modular for special demands	Full aluminum ruggedized body for harsh industrial conditions
Power Consumption	Moderate, suitable for compact robotics platforms	Higher power capacity for larger loads and complex tasks	Designed for sustained industrial use with optimized power efficiency

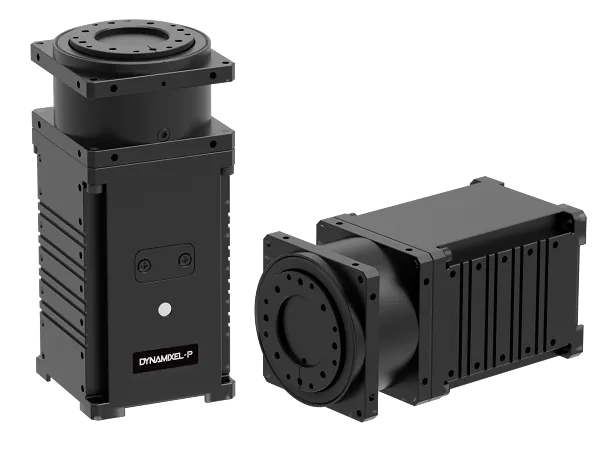

Typical Applications	Educational robots, humanoids, mid-sized industrial robots	Industrial robotics, complex animatronics, modular systems	Heavy-duty industrial robots including humanoids like THOR-OP and large grippers
Unique Features	Versatile models (XM, XH, XD, XW) for different use cases including waterproof-rated XW series	Modular with optional brakes and gear reductions	Ultra-precise control with high resolution and reliability
Backward Compatibility	Compatible within X series submodels	Compatible with 24V X-series V models	Compatible with older Robotis industrial systems
Support & SDK	Full RoboPlus suite, ROS integration, wide ecosystem	Same as X, with additional configurability	Full RoboPlus, ROS, and industrial integration tools

Connectivity

ROBOTIS provides extensive software support including SDKs, ROS integration, and e-manuals facilitating development across platforms.
Utilizes Robotis Protocol 2.0 for reliable, real-time communication over TTL or RS485 networks with daisy-chaining support, facilitating complex multi-axis robotic configurations.

Capabilities

DYNAMIXEL actuators deliver high torque and precise motion control, with built-in sensors for position, velocity, current, temperature, and input voltage feedbacks.
The actuators are designed to be daisy-chained and modular, enabling scalable robotic designs from small manipulators to large humanoids.
High durability and great heat dissipation, featuring aluminum cases with heat sinks and hollow back covers, they have improved durability, thermal management, and cable management.

‍
