Phoenix

Phoenix

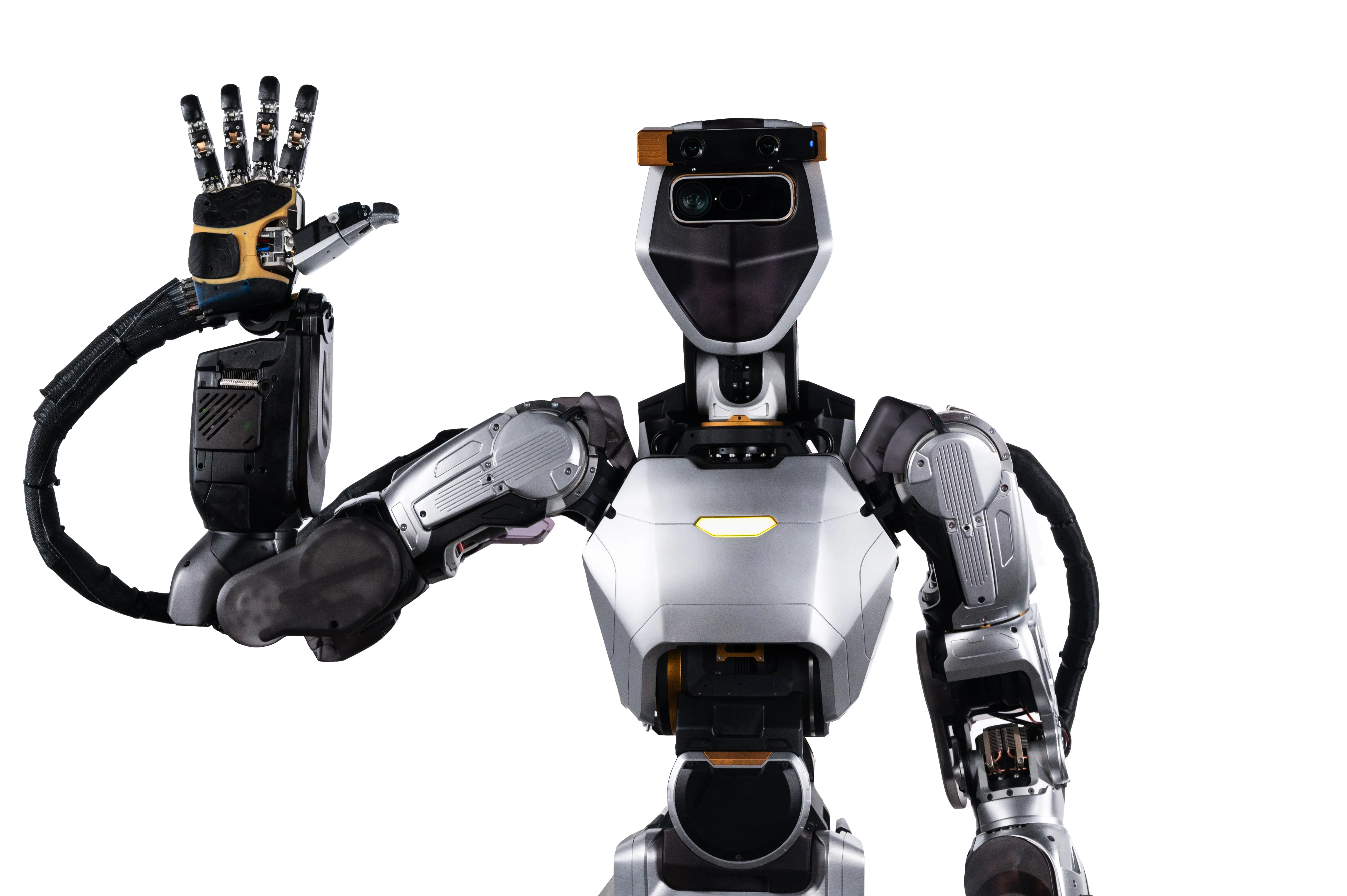

Sanctuary AI’s Phoenix is a 1.7m tall, 70kg humanoid robot with 44 DOF, advanced AI, tactile sensing, and human-like dexterity for versatile industrial and service tasks.
Available
Canada
Humanoid
2024
Specifications
Dev Doc
Website
Made by
Sanctuary AI
Software Type
Closed Source
Software Package
Carbon AI control system combining symbolic and neural reasoning. Integration with large language models such as ChatGPT. Real-time tactile sensor data processing. Human-in-the-loop supervision and fleet management software. Cloud-based AI training and updates.
Actuators
Uses hydraulic actuators for smooth, strong, and precise movements, enabling tasks from delicate manipulations to heavy lifting with human-like dexterity.
Compiute
Powered by Sanctuary AI’s proprietary Carbon AI system, combining local real-time control with cloud-based AI for advanced perception, reasoning, and decision-making.
Sensors
Equipped with advanced tactile sensors, embedded micro cameras for vision, and environmental sensors enabling detailed perception and interaction.
Max Op. time
480
mins

Robot Brief

Sanctuary AI’s Phoenix is a groundbreaking, industrial-grade humanoid robot designed to operate in human-centric environments with human-like intelligence and dexterity. Powered by Sanctuary’s proprietary Carbon AI control system, Phoenix integrates advanced tactile sensors, hydraulic drive systems, and sophisticated manipulators that mimic human hand movements. It is capable of performing a wide range of complex tasks—from delicate operations like threading a needle to heavy lifting—across industries including manufacturing, retail, healthcare, and logistics. The robot features full-body mobility, human-like hands with fine dexterity, and a motorized wheeled base for smooth navigation. Phoenix continuously learns and adapts through deep learning, reinforcement learning, and symbolic reasoning, enabling it to improve performance over time. Its cognitive architecture supports natural language understanding, task planning, and decision-making, allowing it to collaborate safely and effectively with human workers. With a height of 1.7 meters, weight of 70 kg, and a maximum payload of 25 kg, Phoenix represents a significant leap toward general-purpose humanoid robots that can address labor shortages by performing diverse work tasks autonomously or under human supervision.

Use Cases

Phoenix performs a broad range of labor-intensive tasks with human-like dexterity and intelligence. It can pick, pack, assemble, inspect, clean, and assist with household chores, among other activities. The robot understands natural language commands, learns new tasks rapidly, and adapts to changing environments. It can be teleoperated, operate autonomously, or function with pilot-assist, making it versatile for various industrial and service applications.

Industries

  • Manufacturing: Automates complex assembly, inspection, and material handling tasks.
  • Retail: Supports stocking, packing, and customer service operations.
  • Healthcare: Assists with patient care and facility maintenance.
  • Logistics: Performs picking, packing, and sorting in warehouses.
  • Hospitality: Acts as concierge and service assistant.

‍

Specifications

Length
mm
Width
mm
Height (ResT)
mm
Height (Stand)
-
1700
mm
Height (Min)
mm
Height (Max)
mm
Weight (With Batt.)
-
kg
Weight (NO Batt.)
-
70
kg
Max Step Height
-
mm
Max Slope
+/-
-
°
Op. Temp (min)
-
°C
Op. Temp (Max)
-
°C
Ingress Rating
-
No items found.

Intro

Phoenix is a sixth- and seventh-generation humanoid robot featuring 44 degrees of freedom, including sophisticated manipulators and a hydraulic drive system that delivers speed, precision, and strength. It stands 1.7 meters tall and weighs 70 kg, with a motorized wheeled base enabling mobility at speeds up to 1.34 m/s. The robot incorporates advanced tactile sensors and embedded micro cameras for vision and touch, enabling nuanced interaction with objects and environments. Powered by the Carbon AI system, Phoenix combines symbolic and neural reasoning with large language models (e.g., ChatGPT) to understand natural language, plan tasks, and make decisions. Its modular design and robust hardware allow it to operate reliably in demanding industrial settings while safely collaborating with humans. Phoenix supports “human-in-the-loop” supervision and remote fleet management, facilitating efficient deployment across multiple sites.

Connectivity

  • Wi-Fi connectivity
  • Bluetooth Low Energy (BLE)
  • USB and power connectors for charging and data transfer

‍

Capabilities

  • 44 degrees of freedom for lifelike full-body movement and fine manipulation
  • Hydraulic drive system for speed, strength, and precision
  • Advanced tactile sensing integrated into hands and arms
  • Vision system with embedded micro cameras for object recognition and scene analysis
  • AI-powered natural language understanding and task planning via Carbon AI
  • Autonomous operation, teleoperation, and pilot-assist modes
  • Human-robot collaboration with safety features
  • Rapid task automation, reducing new task setup from weeks to under 24 hours

‍
