Spot

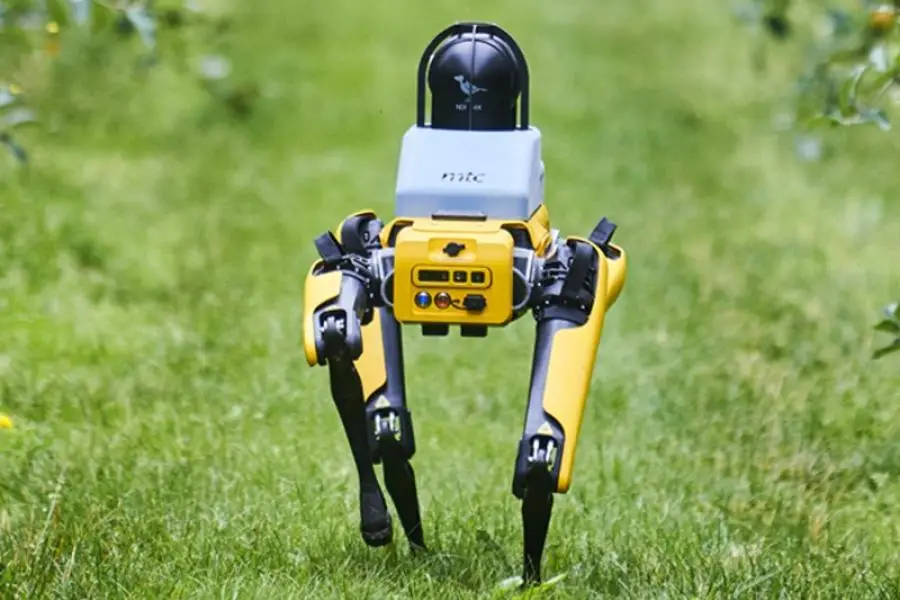

​Spot is an agile, autonomous quadruped robot by Boston Dynamics, designed for versatile sensing and inspection tasks across various industries.
Available
USA
Quadrupedal
2016
Specifications
Dev Doc
Website
Made by
Boston Dynamics, Inc.
Software Type
Closed Source
Software Package
GRPC-based API and Python client library. Spot Software Development Kit (SDK).
Actuators
All-electric actuation
Compiute
Custom control and computing system. Additional compute module can be mounted on top.
Sensors
Perception sensors including stereo cameras, IMU, and position/force sensors in limbs.
Max Op. time
90
mins
Starts at USD74,500

Robot Brief

Spot is a four-legged, dog-like robot developed by Boston Dynamics. It is designed to move across various terrains, capture data, and perform automated tasks in environments that may be hazardous or difficult for humans to access.

It can be equipped with additional sensors, equipment and carriers to support additional requirements in its operational missions.

Use Cases

  • Remote Inspection – Spot can be equipped with cameras and sensors to inspect industrial sites, construction zones, and remote facilities.
  • Security & Surveillance – It can patrol large areas, detect intrusions, and monitor critical infrastructure.
  • Data Collection & Mapping – Spot can autonomously scan and create digital maps of buildings, tunnels, and other environments.
  • Hazardous Environment Operations – Used in places like power plants, mines, and oil rigs to reduce human risk.
  • Automation & AI Integration – Spot can be programmed to carry out repetitive tasks and integrate with AI for smart decision-making.

Industries

  • Construction – Site inspections, progress tracking, and safety monitoring.
  • Manufacturing & Warehousing – Equipment inspection and inventory tracking.
  • Oil & Gas – Pipeline and facility inspection to prevent leaks and hazards.
  • Public Safety & Defense – Search and rescue, disaster response, and law enforcement support.
  • Utilities & Energy – Monitoring power plants, wind farms, and substations.

Specifications

Length
1100
mm
Width
500
mm
Height (ResT)
191
mm
Height (Stand)
610
mm
Height (Min)
191
mm
Height (Max)
700
mm
Weight (With Batt.)
32.7
kg
Weight (NO Batt.)
37.9
kg
Max Step Height
300
mm
Max Slope
+/-
30
°
Op. Temp (min)
-20
°C
Op. Temp (Max)
55
°C
Ingress Rating
IP54
No items found.

Intro

Spot excels in navigating complex terrains with its 360° perception and athletic intelligence, making it suitable for environments like factory floors, construction sites, and research labs. It can perform autonomous inspections, monitor site conditions, and handle hazardous situations, thereby enhancing safety and operational efficiency. Spot supports up to 14 kg of payload, allowing integration of additional sensors and equipment. Its applications span manufacturing, energy, construction, public safety, and academic research.

Operate with Ease

Spot’s vision system makes it easy to navigate around objects and over rough terrain. Control the robot from afar using an intuitive tablet application and built-in stereo cameras. Spot can also be tele operated via Orbit™ desktop software.

Automate Data Collection

Program repeatable autonomous missions to gather consistent data. Flexible autonomy allows Spot to adjust to changes on its programmed path as desired. Missions can be launched from the Spot Dock for remote operations.

Customize for Your Needs

Spot can carry up to 14 kg (30 lbs) of sensing equipment. Our diverse payload ecosystem is ready for a variety of applications, from thermal and acoustic inspections to laser scanning and site progress monitoring.

Capable and Flexible Payload Mounting

  • Max Weight = 14 kg (30.9 lbs)
  • Mounting Area = 850 mm (L) x 240mm (W) x 270 mm (H)
  • Mounting Interface = M5 T-slot rails
  • Connector = DB25 (2 ports)
  • Power Supply = Unregulated DC35-58.8V, 150W per port
  • Integration = Available softwareAPI and hardware interfacecontrol document

Connectivity

  • Connector = DB25 (2 ports)
  • WiFi = 2.4GHz / 5GHz b/g/n, Ethernet
  • Additional Options: Spot can be enhanced with payloads like the Spot CORE I/O, which includes a built-in 5G modem, and the Rajant Kinetic Mesh® Radio Kit for robust communication in challenging environments.

Capabilities

Mobile manipulation. Capable of handling up to 14 kg payloads. 3D vision system with SLAM and obstacle avoidance. Omni-directional walking and multiple walking and trotting gaits. Can climb and descend stairs. Bioinspired dynamic control. Balances and adjusts to physical disturbances. Remote controlled by a human operator while also being able to navigate and perform some tasks autonomously. Ingress protection IP54. Operating environment -20C to 45C.

  1. Terrain navigation: Spot can easily move on rough terrain, walk on stones or stairs, and navigate slopes up to ±30°.
  2. Autonomous operation: It can be set on predefined autonomous missions or manually controlled by an operator.
  3. Environmental sensing: Equipped with a 360° vision system, Spot can detect and avoid obstacles in its path.
  4. Versatile applications: Spot is used for exploration, surveillance, inspection, mapping, data collection, and transportation of equipment in hazardous areas.
  5. Payload integration: Spot can be equipped with various payloads, including thermal and PTZ cameras, for different operational needs.
  6. Fleet operations: The robot is designed to work in fleets, making it scalable for larger operations.
