RB-Y1

RB-Y1

RB-Y1 by Rainbow Robotics is Korea’s first bimanual mobile manipulator with 24 DOF, omnidirectional wheels, and vertical torso movement for agile industrial automation.
Available
South Korea
Humanoid
2024
Specifications
Dev Doc
Website
Made by
Rainbow Robotics Co., Ltd.
Software Type
Closed Source
Software Package
Full-body motion control software. Master-slave teaching interface. Self-collision detection and prevention algorithms. AI-enabled simulation environment. SDK for sensor and application integration.
Actuators
High-performance actuators enabling smooth, precise dual-arm manipulation and vertical torso movement, integrated with advanced control for dynamic operation.
Compiute
Onboard computing supporting real-time control, sensor fusion, and AI algorithms for autonomous navigation and manipulation.
Sensors
Inertial Measurement Unit (IMU) Gripper sensors LiDAR for environment mapping Other proprioceptive and exteroceptive sensors
Max Op. time
mins

Robot Brief

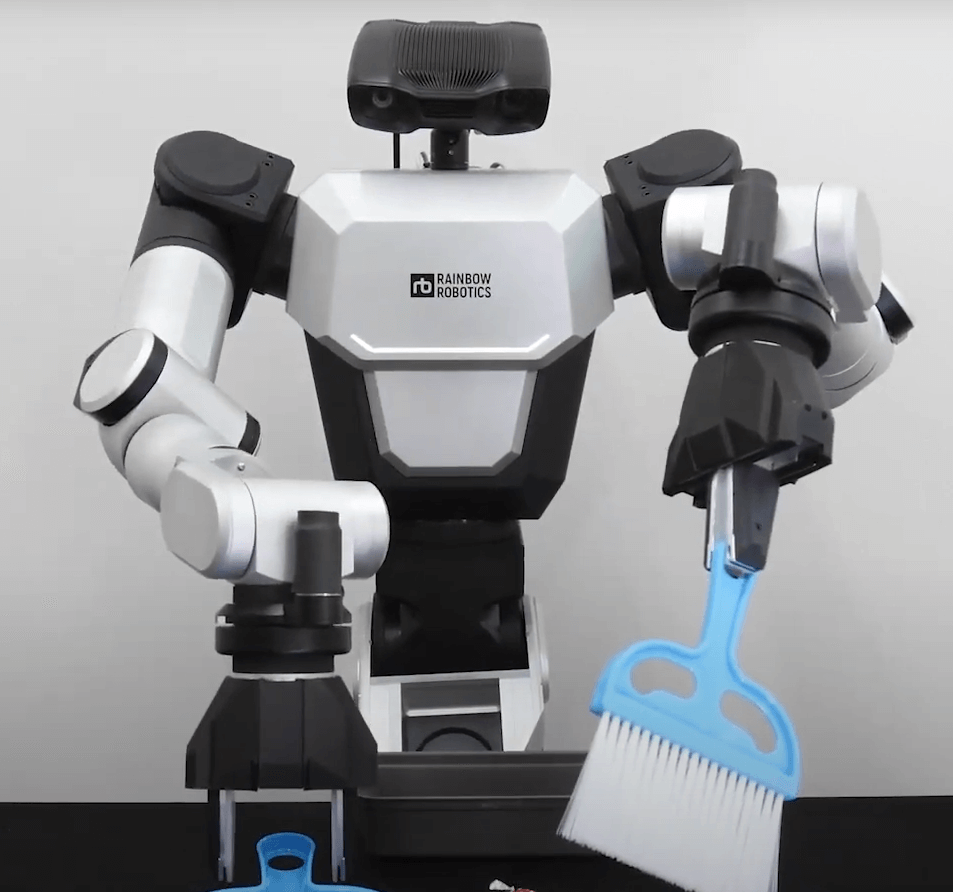

RB-Y1 is Korea’s first bimanual mobile manipulator developed by Rainbow Robotics, combining a humanoid-type dual-arm robot with a high-speed wheeled mobile base. Each arm has 7 degrees of freedom (DoF), and the robot includes a single leg with 6 DoF that enables vertical body movement exceeding 50 cm, allowing it to perform tasks at various heights. The robot weighs 131 kg, stands 1.4 meters tall, and runs at speeds up to 5.4 km/h (1.5 m/s), capable of agile maneuvers including high-speed turns and sudden acceleration via a sophisticated 20-axis full-body control system. RB-Y1 integrates core components from collaborative robots and autonomous mobile robots (AMRs), delivering industrial-grade reliability and performance. It supports teaching via a master-slave arm linkage, self-collision avoidance, and an AI-enabled simulation environment for advanced learning. Designed for the generative AI era, RB-Y1 offers a flexible platform optimized for diverse AI applications in industrial and research settings.

Use Cases

RB-Y1 autonomously navigates complex environments on its omnidirectional wheeled base while performing precise dual-arm manipulation tasks. It can handle repetitive and intricate operations across various heights thanks to its vertical torso mobility. The robot supports human teaching for motion programming and adapts to avoid self-collisions, making it suitable for industrial automation, logistics, inspection, and research.

Industries

  • Manufacturing: Executes precise assembly and material handling tasks.
  • Logistics: Facilitates transport, sorting, and packaging operations.
  • Inspection: Performs detailed monitoring and quality control.
  • Research & Development: Provides a versatile platform for AI and robotics innovation.

‍

Specifications

Length
690
mm
Width
600
mm
Height (ResT)
mm
Height (Stand)
-
1400
mm
Height (Min)
mm
Height (Max)
mm
Weight (With Batt.)
-
kg
Weight (NO Batt.)
-
13
kg
Max Step Height
-
mm
Max Slope
+/-
-
°
Op. Temp (min)
-
°C
Op. Temp (Max)
-
40
°C
Ingress Rating
-
No items found.

Intro

RB-Y1 is a semi-humanoid robot featuring two 7-DoF arms and a single leg with 6 DoF mounted on a wheeled mobile platform. It stands 140 cm tall, weighs 131 kg, and offers a total of 24 degrees of freedom. The robot’s omnidirectional Mecanum wheel system enables 360-degree movement for superior maneuverability in constrained spaces. Its vertical torso movement exceeds 50 cm, allowing task execution at multiple heights. RB-Y1’s full-body 20-axis control system ensures precise, dynamic motions and stable center-of-gravity management. The robot supports master-slave teaching for motion programming and includes self-collision prevention features. It is compatible with AI simulation environments and offers an SDK integrating sensors like IMU, grippers, and LiDAR for customization.

Connectivity

  • Wi-Fi (2.4 GHz / 5 GHz)
  • Bluetooth
  • USB ports
  • SDK supporting integration with IMU, gripper, and LiDAR sensors

‍

Capabilities

  • Dual 7-DoF arms for complex, simultaneous manipulation
  • Single 6-DoF leg for vertical torso adjustment (>50 cm)
  • Omnidirectional Mecanum wheel base for agile 360° movement
  • High-speed operation up to 5.4 km/h with sharp turning and acceleration
  • 20-axis full-body control for precise and stable motion
  • Master-slave teaching and self-collision avoidance
  • AI-enabled simulation and development environment

‍
