Walker 2

Walker 2

Walker 2 by DroidUp is a lightweight humanoid robot using tendon-driven tech for agile, multi-terrain walking, obstacle climbing, and energy-efficient motion control.
Enquire about robot
Specifications
Dev Doc
Website
Data verified by manufacturer
Made by
Shanghai DroidUp Co., Ltd.
Software Type
Closed Source
Software Package
Actuators
Bionic tendon-driven actuators controlled by distributed motors. Dynamically adjustable joint stiffness for versatile locomotion.
Compiute
Powered by Model Predictive Control (MPC) combined with Reinforcement Learning (RL), single-device compute power at 6 TOPS and Cloud Compute Power at 200 TOPS.
Sensors
Equipped with 6 RGB cameras and 8 microphone array for sound detection.
Max Op. time
360
mins
In Development
China
Humanoid
2024

Robot Brief

Walker 2 is a lightweight, modular humanoid robot developed by Shanghai-based DroidUp that leverages bionic tendon-driven technology paired with distributed motor coordination. It aims to achieve highly efficient, human-level walking gaits and multi-terrain adaptability (including climbing stairs, traversing gravel, and sloped surfaces). The robot employs dynamically adjustable joint stiffness to modulate movement precision and energy usage, enabling a walking speed of up to 3 m/s and obstacle clearance capability up to 15 cm. The 30 kg full-sized robot targets use cases from research and education to field inspections, service robotics, and industrial applications requiring high agility and endurance.

Use Cases

  • Capable of dynamic and agile humanoid walking on varied terrains.
  • Crosses obstacles and climbs stairs autonomously.
  • Adapts joint stiffness for energy-efficient and precise motion control.
  • Modular design allows customization for specific task requirements.
  • Supports long endurance walking with 25% energy efficient compared to others on the market.

Industries

  • Research & Education: For studying bionic locomotion and biomechanics, to nurture the future AI creators.
  • Industrial Use: Able to preform high precision assembly, materials sorting and able to operate in a hazardous environment.

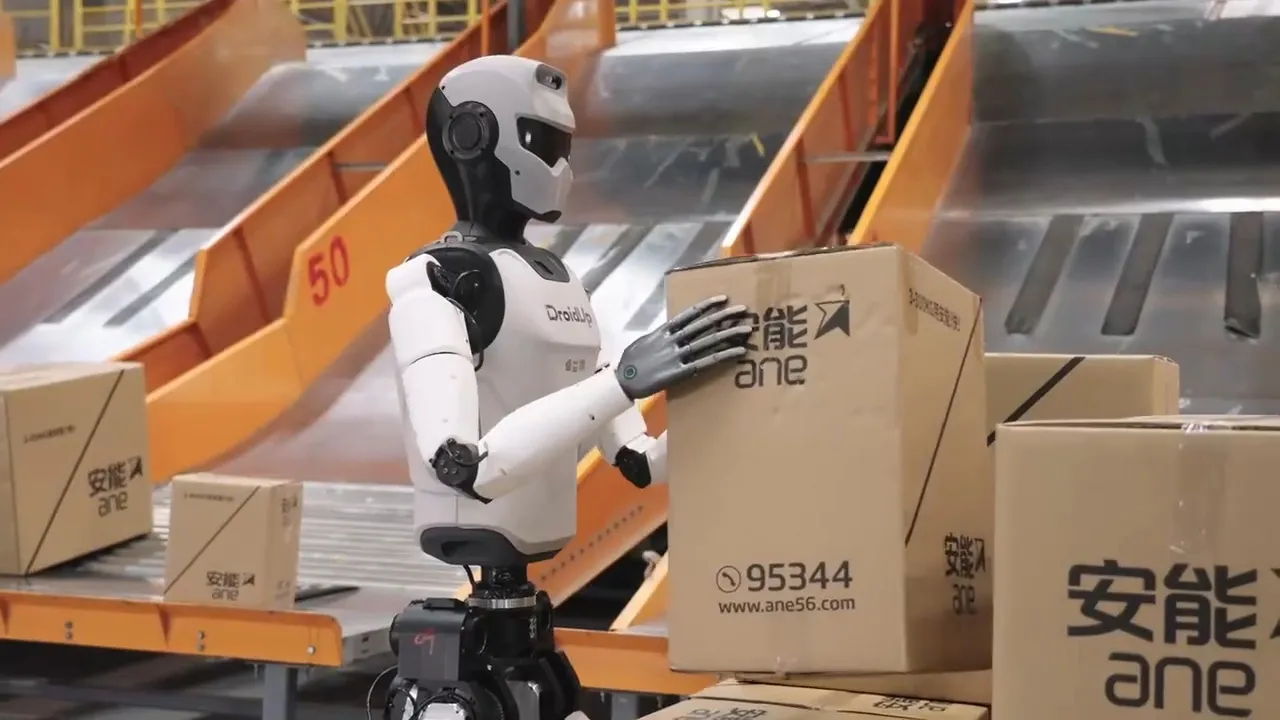

  • Service Robotics: Assists in logistics, delivery, and human-assistance roles in exhibitions and shopping malls.
  • Healthcare & Rehabilitation: Potential platform for mobility aids and physical therapy robotic assistance.

Specifications

Length
-
mm
Width
-
mm
Height (ResT)
-
mm
Height (Stand)
-
1700
mm
Height (Min)
-
mm
Height (Max)
-
mm
Weight (With Batt.)
-
30
kg
Weight (NO Batt.)
-
kg
Max Step Height
-
150
mm
Max Slope
+/-
-
30
°
Op. Temp (min)
-
°C
Op. Temp (Max)
-
°C
Ingress Rating
-
No items found.

Intro

The robot stands approximately 1.7 meters tall, weighing 30 kg, with a modular frame constructed from high-strength lightweight materials. It employs bionic tendon drive systems co-operating with distributed motors for dynamically adjustable joint stiffness and smooth human-like gait. Integrated sensors provide real-time feedback for robotic balancing and environmental adaptation. Its walking speed reaches up to 3 m/s, with the ability to overcome 15 cm steps and navigate rough surfaces such as gravel and slopes.

Connectivity

Capabilities

  • Fast, stable humanoid walking (up to 3 m/s).
  • Climbing and negotiating obstacles up to 15 cm high.
  • Adaptive joint stiffness for precision and energy efficiency.
  • Modular for application-specific adjustments.
  • Long endurance suitable for continuous operation in demanding environments.
